Lighting system

Product Overview:

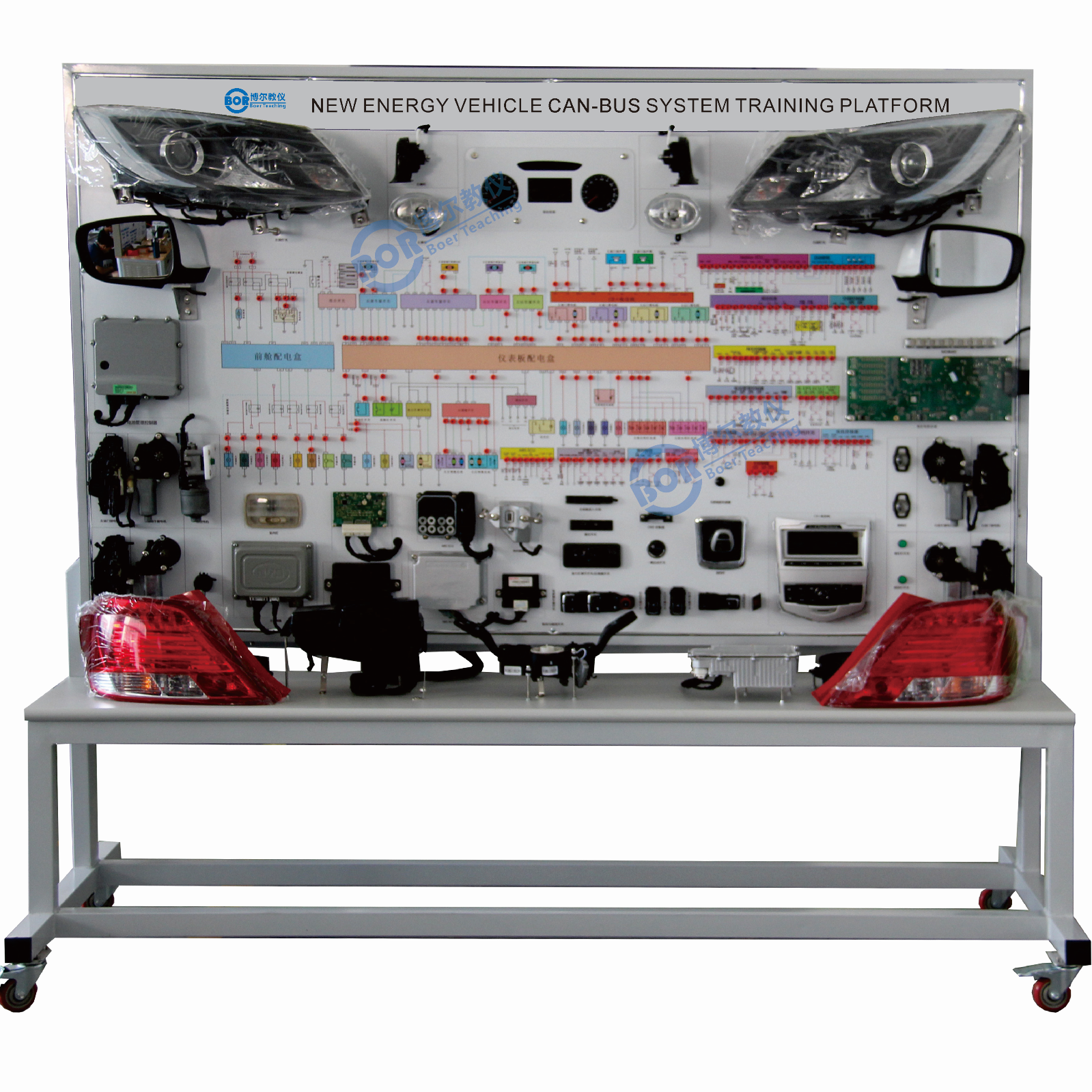

This product uses a real automotive lighting system as its base, fully demonstrating the system's structure and operation. It is suitable for teaching theoretical and practical training in automotive lighting systems in vocational colleges, higher vocational schools, general education institutions, and training organizations. This demonstration board is fully functional, easy to operate, and safe and reliable.

Features:

1. A realistic and functional automotive electronic instrument system, fully demonstrating its structure.

2. Manipulating various sensors and switches connected to the instrument system simulates the operation of the instrument signal source, realistically demonstrating the working process of the automotive instrument system.

3. The demonstration board panel is made of high-grade aluminum composite panel that is impact-resistant, stain-resistant, fire-resistant, and moisture-proof, with a special primer coating. Students can intuitively compare circuit diagrams and physical components to understand and analyze the working principles of the automotive electronic instrument system.

4. The demonstration board panel is equipped with test terminals, allowing direct testing of the electrical signals of various circuit components in the automotive electronic instrument system, such as resistance, voltage, current, and frequency signals.

5. The teaching board panel is made of 1.5mm cold-rolled steel sheet, stamped and formed, with an attractive appearance. The base frame is made of welded steel structure with a powder-coated surface and includes self-locking casters. The teaching board base has a 40cm tabletop for convenient placement of documents, lightweight testing instruments, etc.

6. The teaching board operates on a standard 220V AC power supply, which is converted to 12V DC power through internal circuitry. No battery is required, reducing charging inconvenience. The 12V DC power supply has short-circuit protection.

Technical Specifications:

Dimensions: 1240 × 650 × 1700mm (L × W × H)

Operating Power Supply: AC 220V±10% 50Hz

Operating Temperature: -40℃ ~ +50℃
